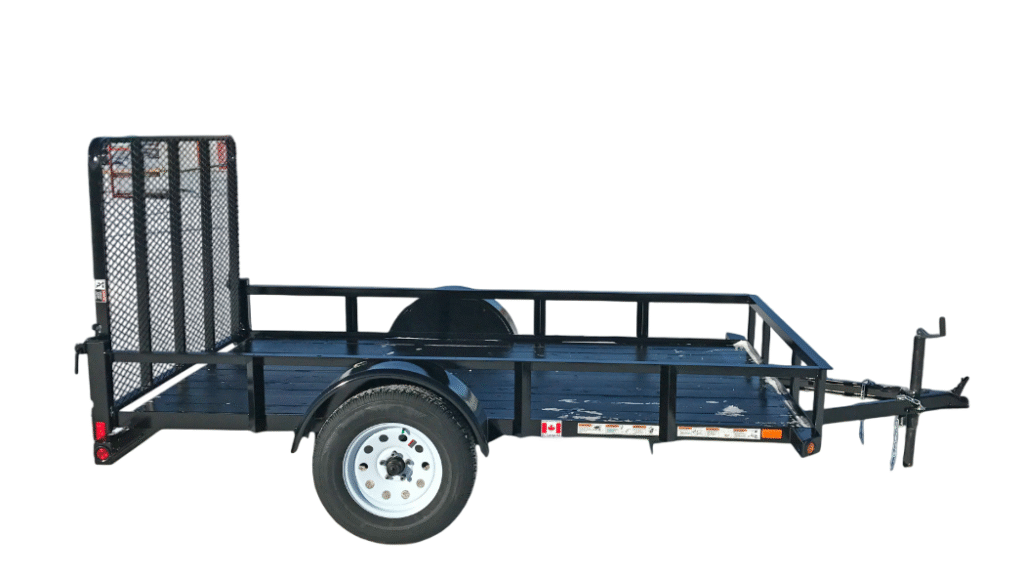

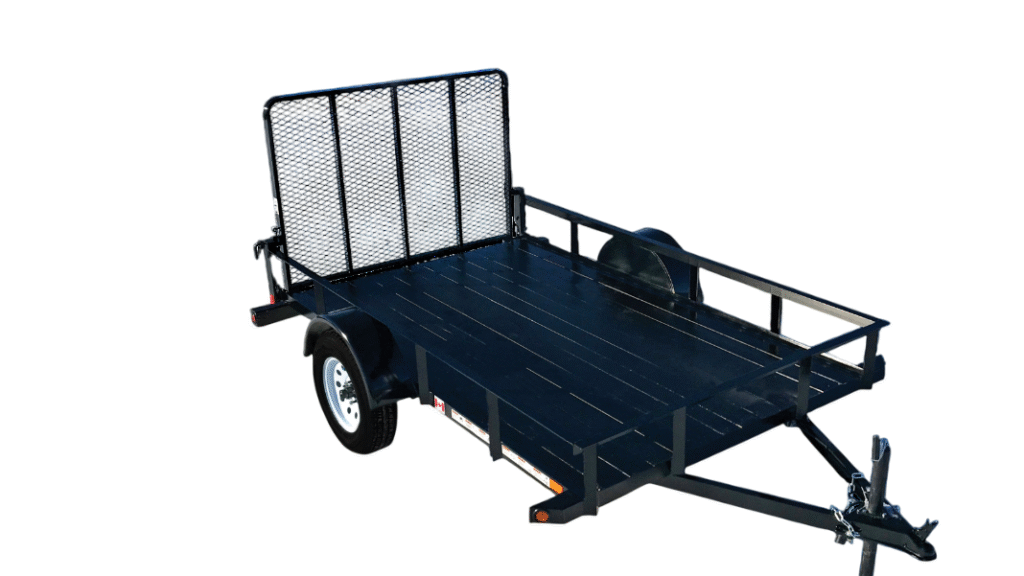

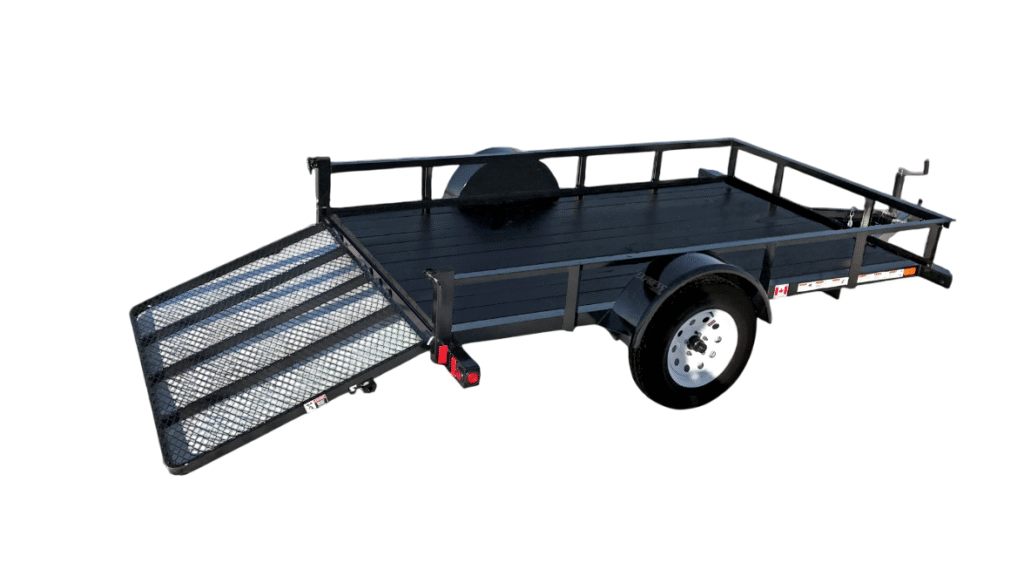

6' x 10' Angle Iron Side w/ 3500 lbs. Axle
Specifications:
Available in: Express
Model #s: 6X10ASE
- Overall Length: 13′ 7″
- Overall Width: 91″
- Axles: 3500 lb
- Ball Size: 2″
- Between Fenders: 72″
- Bolt Pattern: 5 – 4.5 Bolt
- Brakes: Option
- Crossmember: 2″ x 2″ Angle
- Crossmember Spacing: 24″
- Curb Weight: 838 lbs
- Deck Height: 19″
- Deck Length: 10′
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- GAWR: 3500 lbs
- GVWR: 2990 lbs
- Hitch Height: 14″
- Hitch Size: 3″ Channel
- Hitch Weight (Empty): 99 lbs
- Jack: 2000 lb A-frame
- Payload Capacity: 2451 lbs
- Ply: 6
- Tires: 205/75R15C
6' x 12' Angle Iron Side w/ 3500 lbs. Axle
Specifications:
Available in: Express
Model #s: 6X12ASE
- Overall Length: 15′ 7″
- Overall Width: 91″
- Axles: 3500 lb
- Ball Size: 2″
- Between Fenders: 72″
- Bolt Pattern: 5 – 4.5 Bolt
- Brakes: Option
- Crossmember: 2″ x 2″ Angle
- Crossmember Spacing: 24″
- Curb Weight: 904 lbs
- Deck Height: 19″
- Deck Length: 12′
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- GAWR: 3500 lbs
- GVWR: 2990 lbs
- Hitch Height: 14″
- Hitch Size: 3″ Channel
- Hitch Weight (Empty): 110 lbs
- Jack: 2000 lb A-frame
- Payload Capacity: 2385 lbs
- Ply: 6
- Tires: 205/75R15C
76 inches x 12' Angle Iron Side w/ 3500 lbs. Axle
Specifications:
Available in: Express
Model #s: 65X12ASE
- Overall Length: 15′ 7″
- Overall Width: 95″
- Axles: 3500 lb
- Ball Size: 2″
- Between Fenders: 76″
- Bolt Pattern: 5 – 4.5 Bolt
- Brakes: Option
- Crossmember: 2″ x 2″ Angle
- Crossmember Spacing: 24″
- Curb Weight: 937 lbs
- Deck Height: 19″
- Deck Length: 12′
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- GAWR: 3500 lbs
- GVWR: 2990 lbs
- Hitch Height: 14″
- Hitch Size: 3″ Channel
- Hitch Weight (Empty): 112 lbs
- Jack: 2000 lb A-frame
- Payload Capacity: 2352 lbs
- Ply: 6
- Tires: 205/75R15C
82 inches x 12' Angle Iron Side w/ 3500 lbs. Axle
Specifications:
Available in: Express
Model #s: 7X12ASE
- Overall Length: 15′ 7″
- Overall Width: 101″
- Axles: 3500 lb
- Ball Size: 2″
- Between Fenders: 82″
- Bolt Pattern: 5 – 4.5 Bolt
- Brakes: Option
- Crossmember: 2″ x 2″ Angle
- Crossmember Spacing: 24″
- Curb Weight: 996 lbs
- Deck Height: 19″
- Deck Length: 12′
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- GAWR: 3500 lbs
- GVWR: 2990 lbs
- Hitch Height: 14″
- Hitch Size: 3″ Channel
- Hitch Weight (Empty): 126 lbs
- Jack: 2000 lb A-frame
- Payload Capacity: 2293 lbs
- Ply: 6
- Tires: 205/75R15C
82 inches x 14' Angle Iron Side w/ 3500 lbs. Axle
Specifications:
Available in: Express
Model #s: 7X14ASE
- Overall Length: 17′ 7″
- Overall Width: 101″
- Axles: 3500 lb
- Ball Size: 2″
- Between Fenders: 82″
- Bolt Pattern: 5 – 4.5 Bolt
- Brakes: Option
- Crossmember: 2″ x 2″ Angle
- Crossmember Spacing: 24″
- Curb Weight: 1080 lbs
- Deck Height: 19″
- Deck Length: 14′
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- GAWR: 3500 lbs
- GVWR: 2990 lbs
- Hitch Height: 14″
- Hitch Size: 3″ Channel
- Hitch Weight (Empty): 132 lbs
- Jack: 2000 lb A-frame
- Payload Capacity: 2209 lbs
- Ply: 6
- Tires: 205/75R15C
