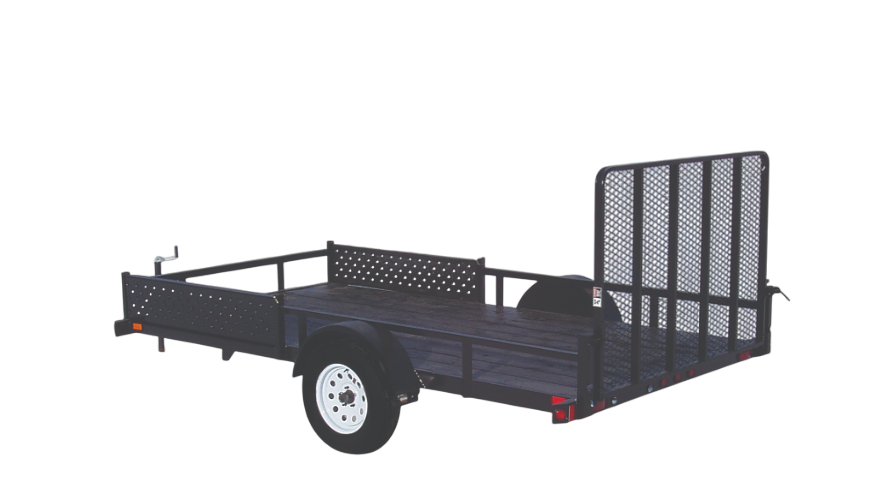

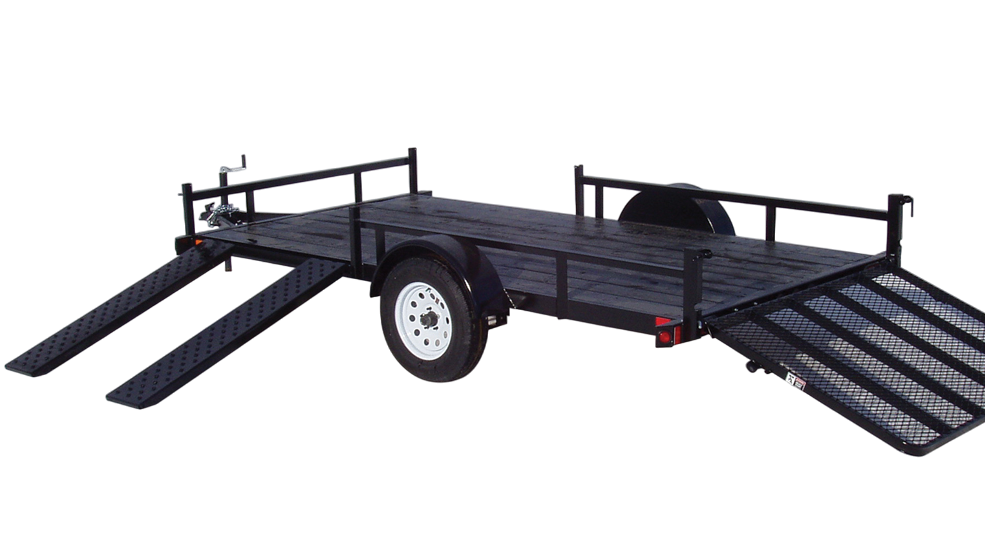

6.5' x 12' Ramp Side Utility w/ 3500 lbs. Axle
Specifications:
Available in: Express
Model #s: 65X12RSE
- Overall Length: 15′ 10″
- Overall Width: 95″
- Axles: 1 – 3,500 lb.
- Ball Size: 2″
- Between Fenders: 76″
- Bolt Pattern: 5-4.5 Bolt
- Brakes: Option
- Crossmember: 2″ x 2″ Angle
- Crossmember Spacing: 24″
- Curb Weight: 1,036 lbs.
- Deck Height: 21″
- Deck Length: 12′
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame Size: 4″ Channel
- GAWR: 3,500 lbs.
- GVWR: 2,990 lbs.
- Hitch Height: 16″
- Hitch Size: 3″ Channel
- Hitch Weight (Empty): 124 lbs.
- Jack: 2,000 lb. A-Frame
- Payload Capacity: 2,253 lbs.
- Ply: 6 Ply
- Tires: 205/75R15C
6.5' x 14' Ramp Side Utility w/ 3500 lbs. Axle
Specifications:
Available in: Express
Model #s: 65X14RSE
- Overall Length: 17′ 10″
- Overall Width: 95″
- Axles: 1 – 3,500 lb.
- Ball Size: 2″
- Between Fenders: 76″
- Bolt Pattern: 5-4.5 Bolt
- Brakes: Option
- Crossmember: 2″ x 2″ Angle
- Crossmember Spacing: 24″
- Curb Weight: 1,168 lbs.
- Deck Height: 21″
- Deck Length: 14′
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame Size: 4″ Channel
- GAWR: 3,500 lb.
- GVWR: 2,990 lb.
- Hitch Height: 16″
- Hitch Size: 3″ Channel
- Hitch Weight (Empty): 140 lbs.
- Jack: 2,000 lb. A-Frame
- Payload Capacity: 2,121 lbs.
- Ply: 6 Ply
- Tires: 205/75R15C
7' x 12' Ramp Side Utility w/ 3500 lbs. Axle
Specifications:
Available in: Express
Model #s: 7X12RSE
- Overall Length: 15′ 10″
- Overall Width: 101″
- Axles: 1 – 3,500 lb.
- Ball Size: 2″
- Between Fenders: 82″
- Bolt Pattern: 5-4.5 Bolt
- Brakes: Option
- Crossmember: 2″ x 2″ Angle
- Crossmember Spacing: 24″
- Curb Weight: 1,080 lbs.
- Deck Height: 21″
- Deck Length: 12′
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame Size: 4″ Channel
- GAWR: 3,500 lb.
- GVWR: 2,990 lb.
- Hitch Height: 16″
- Hitch Size: 3″ Channel
- Hitch Weight (Empty): 130 lbs.
- Jack: 2,000 lb. A-Frame
- Payload Capacity: 2,209 lbs.
- Ply: 6 Ply
- Tires: 205/75R15C
7' x 14' Ramp Side Utility w/ 3500 lbs. Axle
Specifications:
Available in: Express
Model #s: 7X14RSE
- Overall Length: 17′ 10″
- Overall Width: 101″
- Axles: 1 – 3,500 lb.
- Ball Size: 2″
- Between Fenders: 82″
- Bolt Pattern: 5-4.5 Bolt
- Brakes: Option
- Crossmember: 2″ x 2″ Angle
- Crossmember Spacing: 24″
- Curb Weight: 1,212 lbs.
- Deck Height: 21″
- Deck Length: 14′
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame Size: 4″ Channel
- GAWR: 3,500 lb.
- GVWR: 2,990 lb.
- Hitch Height: 16″
- Hitch Size: 3″ Channel
- Hitch Weight (Empty): 154 lbs.
- Jack: 2,000 lb. A-Frame
- Payload Capacity: 2,077 lbs.
- Ply: 6 Ply
- Tires: 205/75R15C
