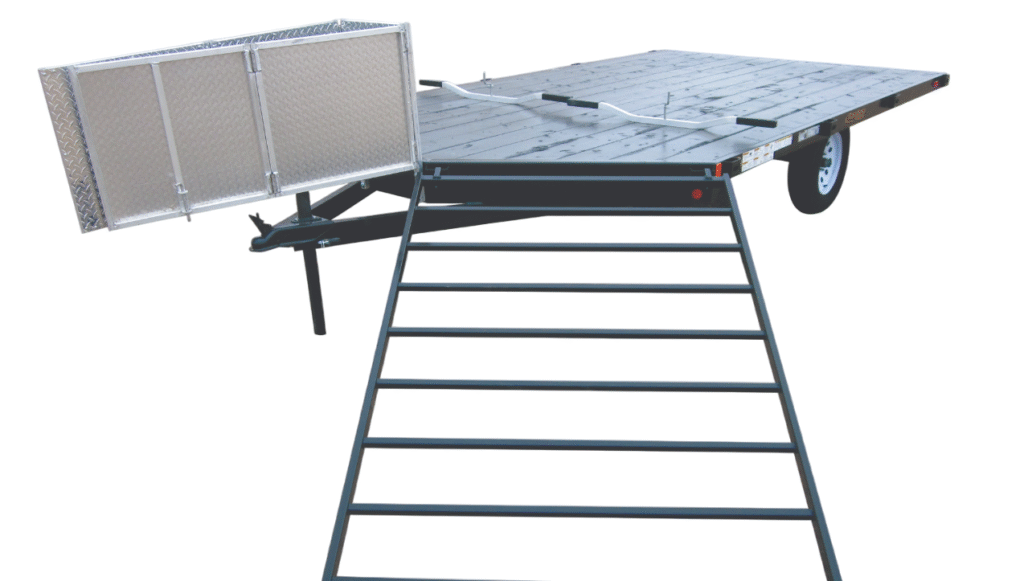

12' x 2-Place ATV/Sled w/ 3500 lbs. Axle
Specifications:
Model #s: 212A13E
- Overall Length: 18′
- Overall Width: 102″
- Axles: 1-3,500 lb.
- Ball Size: 2″
- Brakes: Optional
- Crossmember: 2″ x 2″ x 3/16″ Angle
- Curb Weight: 1,311 lbs.
- Deck Height: 31″
- Deck Length (side): 12′
- Deck Length including 30″ V: 14′ 6″
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame & Hitch: 4″ Channel
- GAWR: 3,500 lbs.
- GVWR: 2,990 lbs.
- Hitch Height: 25″
- Hitch Weight (Empty): 130 lbs.
- Jack: 2000 lb
- Payload Capacity: 1,978 lbs.
- Tires: 205/75R15C
- Wheels: 5-45 Bolt
14' x 2-Place ATV/Sled w/ 3500 lbs. Axle
Specifications:
Model #s: 214A13E
- Overall Length: 20′
- Overall Width: 102″
- Axles: 1-3,500 lb.
- Ball Size: 2″
- Brakes: Optional
- Crossmember: 2″ x 2″ x 3/16″ Angle
- Curb Weight: 1,535 lbs.
- Deck Height: 31″
- Deck Length (side): 14′
- Deck Length including 30″ V: 16′ 6″
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame & Hitch: 4″ Channel
- GAWR: 3,500 lbs.
- GVWR: 2,990 lbs.
- Hitch Height: 25″
- Hitch Weight (Empty): 130 lbs.
- Jack: 2000 lb
- Payload Capacity: 1,754 lbs.
- Tires: 205/75R15C
- Wheels: 5-45 Bolt
16' x 2-Place ATV/Sled w/ 2-3500 lbs. Axles
Specifications:
Model #s: 216A23E
- Overall Length: 22′
- Overall Width: 102″
- Axles: 2-3,500 lb.
- Ball Size: 2 5/16″
- Brakes: Standard
- Crossmember: 2″ x 2″ x 3/16″ Angle
- Curb Weight: 1,874 lbs.
- Deck Height: 31″
- Deck Length (side): 16′
- Deck Length including 30″ V: 18′ 6″
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame & Hitch: 4″ Channel
- GAWR: 7,000 lbs.
- GVWR: 7,000 lbs.
- Hitch Height: 25″
- Hitch Weight (Empty): 175 lbs.
- Jack: 2000 lb
- Payload Capacity: 5,826 lbs.
- Tires: 205/75R15C
- Wheels: 5-45 Bolt

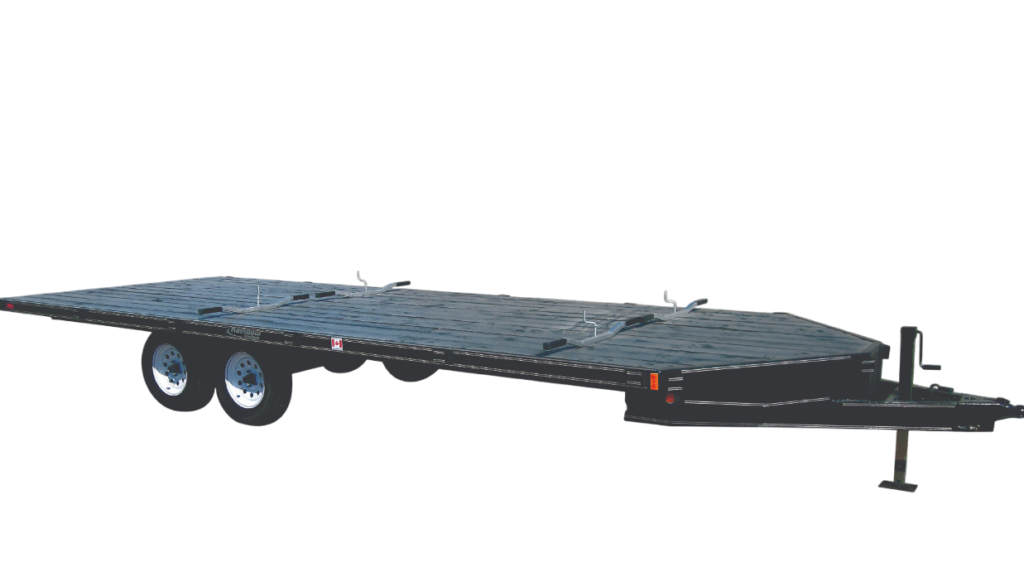

20' x 4-Place ATV/Sled w/ 2-3500 lbs. Axles
Specifications:
Model #s: 420A23E
- Overall Length: 26′
- Overall Width: 102″
- Axles: 2-3500 lb.
- Ball Size: 2 5/16″
- Brakes: Standard
- Crossmember: 2″ x 2″ x 3/16″ Angle
- Curb Weight: 2,327 lbs
- Deck Height: 31″
- Deck Length (side): 20′
- Deck Length including 30″ V: 22′ 6″
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame & Hitch: 6″ Channel
- GAWR: 7,000 lbs.
- GVWR: 7,000 lbs.
- Hitch Height: 24″
- Hitch Weight (Empty): 195 lbs.
- Jack: 7K Drop Leg
- Payload Capacity: 5,373 lbs.
- Tires: 205/75R15C
- Wheels: 5-45 Bolt
22' x 4-Place ATV/Sled w/ 2-3500 lbs. Axles
Specifications:
Model #s: 422A23E
- Overall Length: 28′
- Overall Width: 102″
- Axles: 2-3500 lb.
- Ball Size: 2 5/16″
- Brakes: Standard
- Crossmember: 2″ x 2″ x 3/16″ Angle
- Curb Weight: 2,551 lbs.
- Deck Height: 31″
- Deck Length (side): 22′
- Deck Length including 30″ V: 24′ 6″
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame & Hitch: 6″ Channel
- GAWR: 7,000 lbs.
- GVWR: 7,000 lbs.
- Hitch Height: 24″
- Hitch Weight (Empty): 195 lbs.
- Jack: 7K Drop Leg
- Payload Capacity: 5,149 lbs.
- Tires: 205/75R15C
- Wheels: 5-45 Bolt
