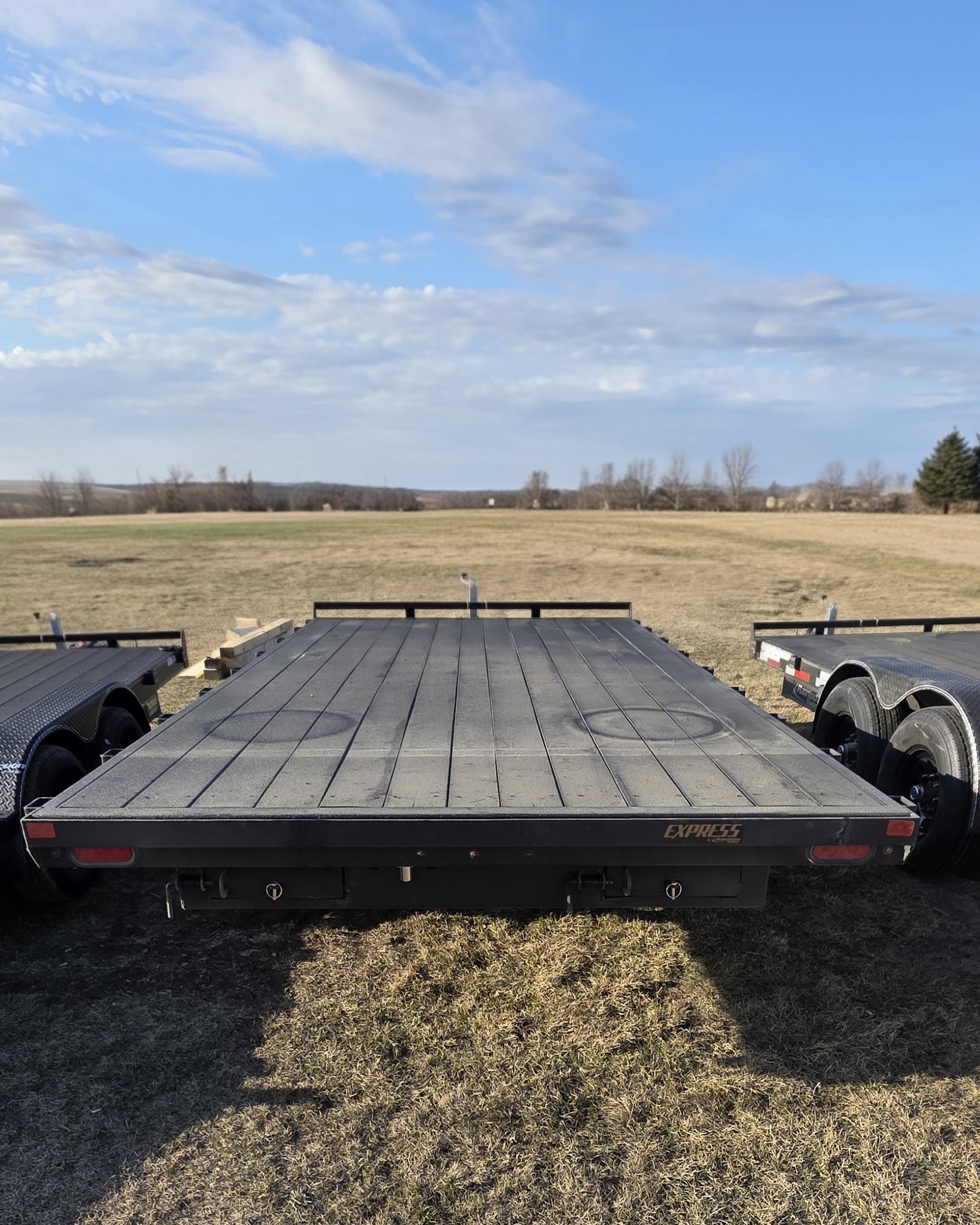

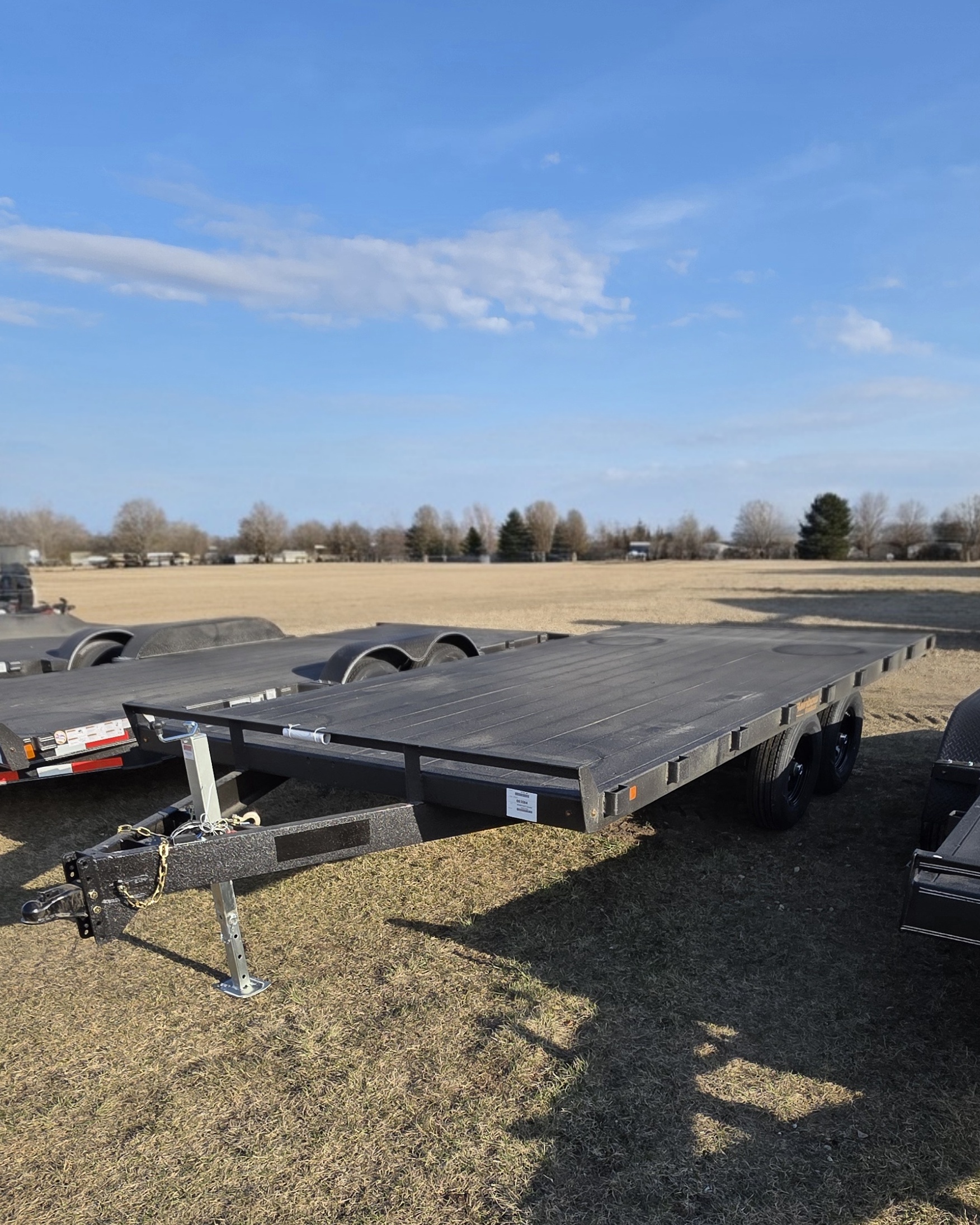

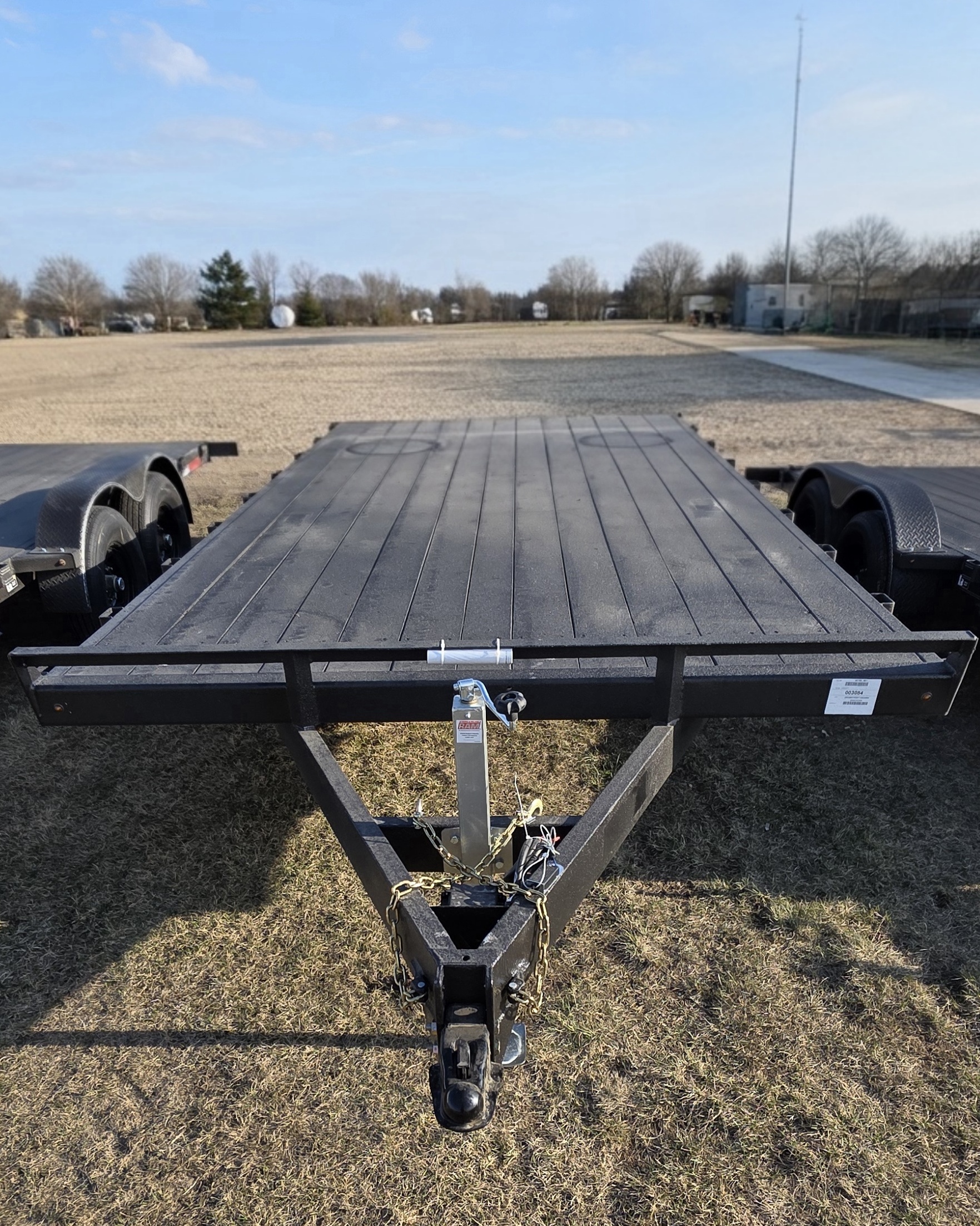

16′ Deck Over with 2-5200 lbs. Axles
$7,450.00
- Overall Length: 20′ 9″
- Overall Width: 102″ (97.5″ Deck Width)
- Axles: 2-5200 lb
- Ball Size: 2 5/16″ Height Adjustable
- Bolt Pattern: 6-5.5 Bolt Pattern
- Brakes: Both Axles
- Crossmember: 3″ Channel
- Crossmember Spacing: 24″
- Curb Weight: 2,446 lbs
- Deck Height: 31″
- Deck Length: 16′ 4″
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame & Hitch: 6″ Channel
- GAWR: 10,400 lbs.
- GVWR: 9,900 lbs.
- Hitch Height: 20″ – 28″
- Jack: 7K Drop Leg
- Payload Capacity: 8,444 lbs.
- Ply: 8 Ply
- Tires: 225/75R15D
