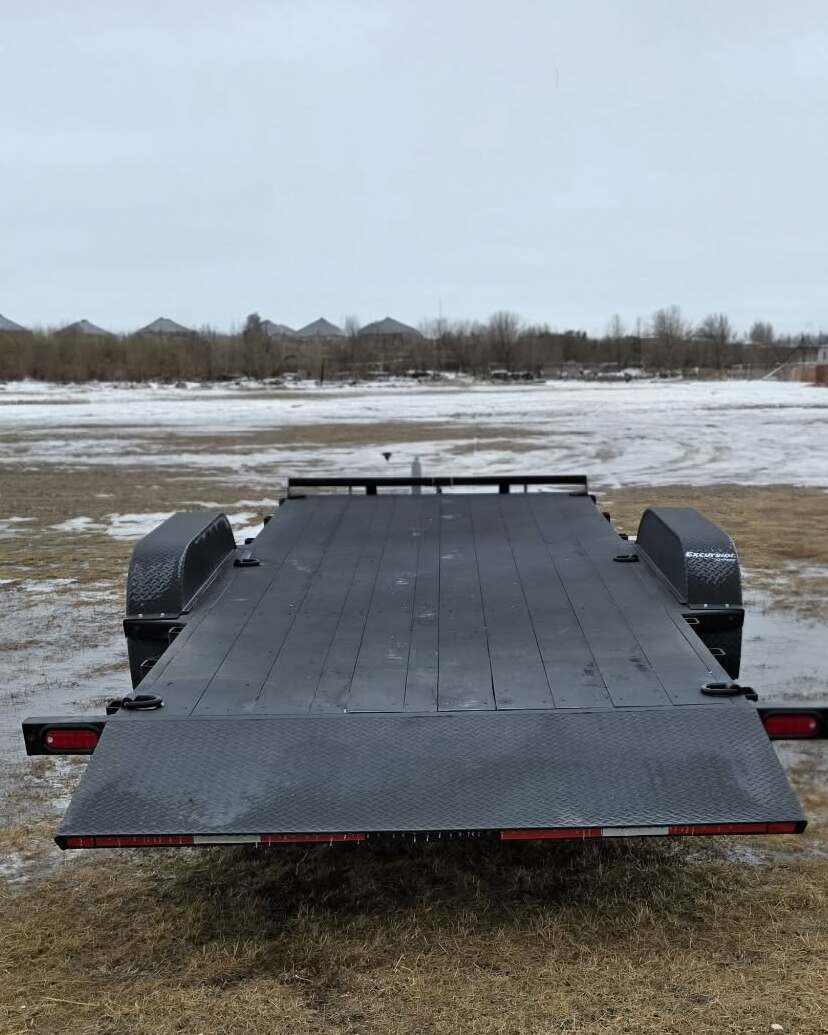

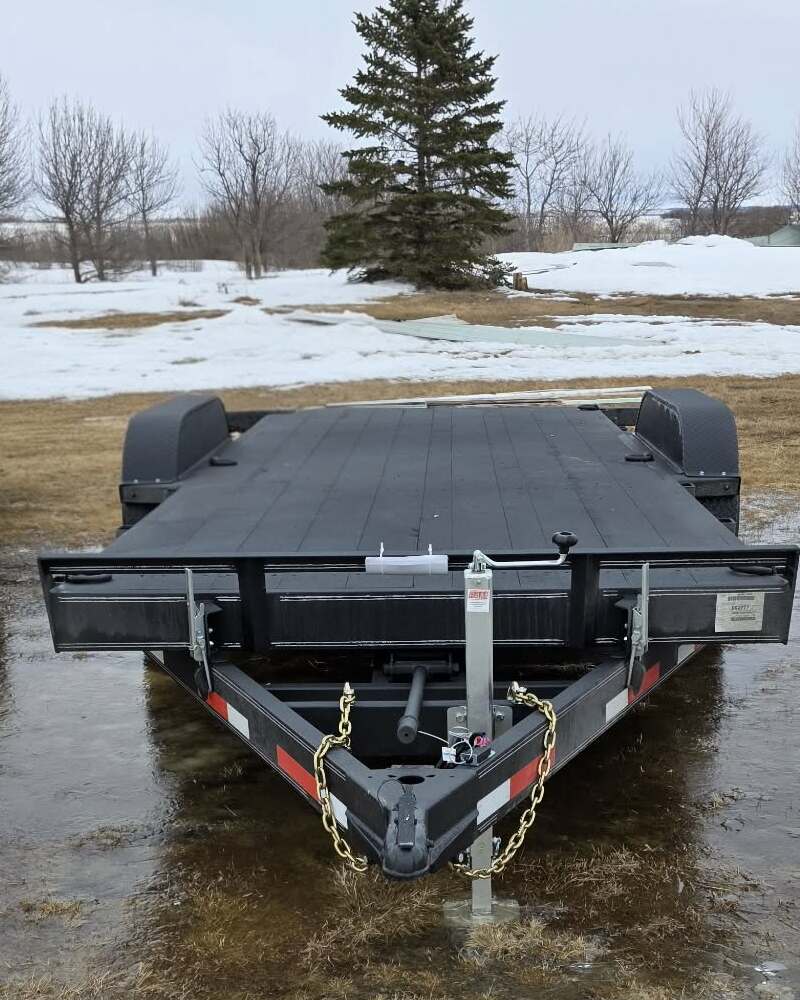

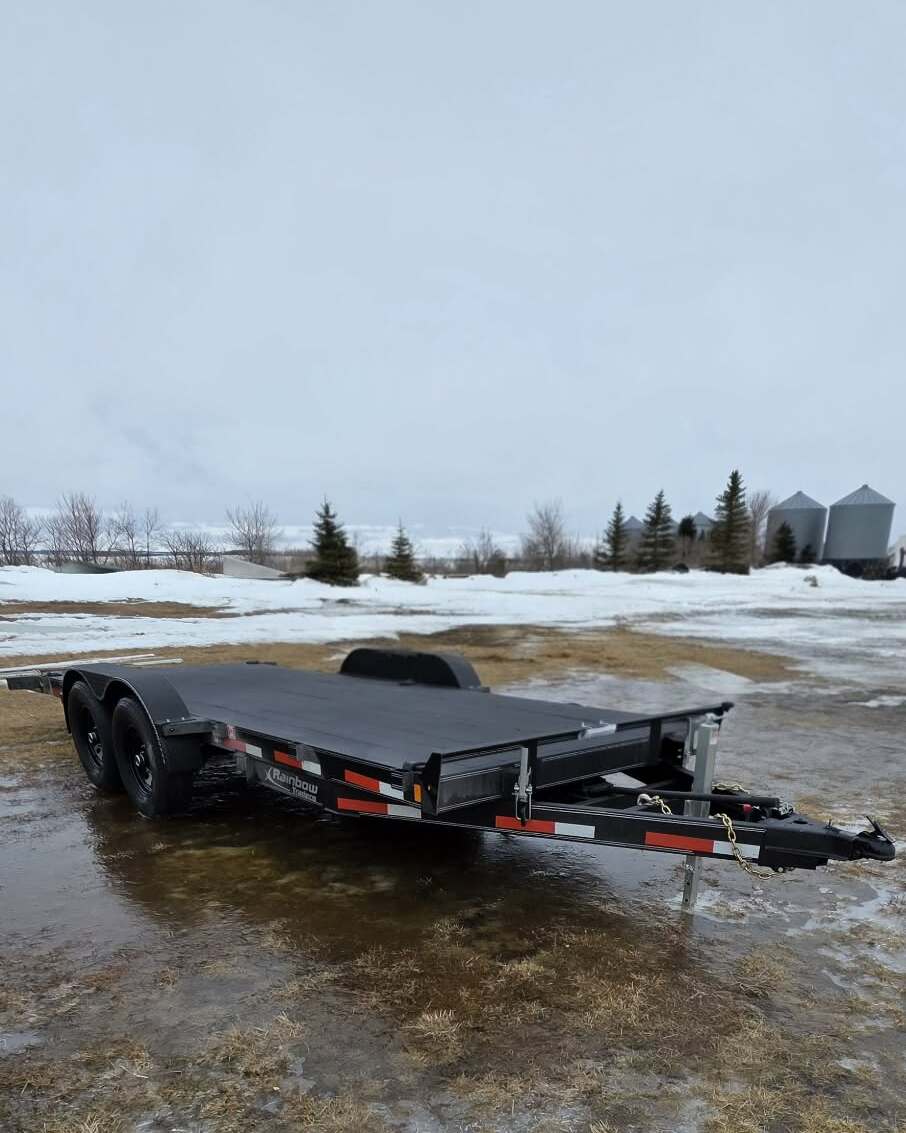

20’ Full Tilt C&E Hauler with 2‑7000 lbs. Axles

$9,950.00

Available in: Express, Excursion
Model #s: 7720E, 7720M



**Includes 6 D-Rings

  • Overall Length: 24′
  • Overall Width: 102″
  • Axles: 2-7000 lb.
  • Ball Size: 2 5/16″
  • Between Fenders: 82″
  • Bolt Pattern: 8-65 Bolt
  • Brakes: Both Axles
  • Coupler: 2 5/16″
  • Crossmember: 3″ Channel
  • Crossmember Spacing: 16″
  • Curb Weight: 2,800 lbs.
  • Deck Height: 26″
  • Deck Length: 20′
  • Electrical Hook-up: RV Plug
  • Floor: 2″ Spruce
  • Frame & Hitch: 6″ Channel
  • GVWR: 14,000 lbs.
  • Hitch Height: 22″
  • Hitch Weight (Empty): 300 lbs.
  • Jack: 7,000 or 12,000 lbs. Drop Leg
  • Payload Capacity: 12,600 lbs.
  • Ply: 10 Ply
  • Slide in Ramps: 12″ x 60″
  • Tires: 16″ E Range
