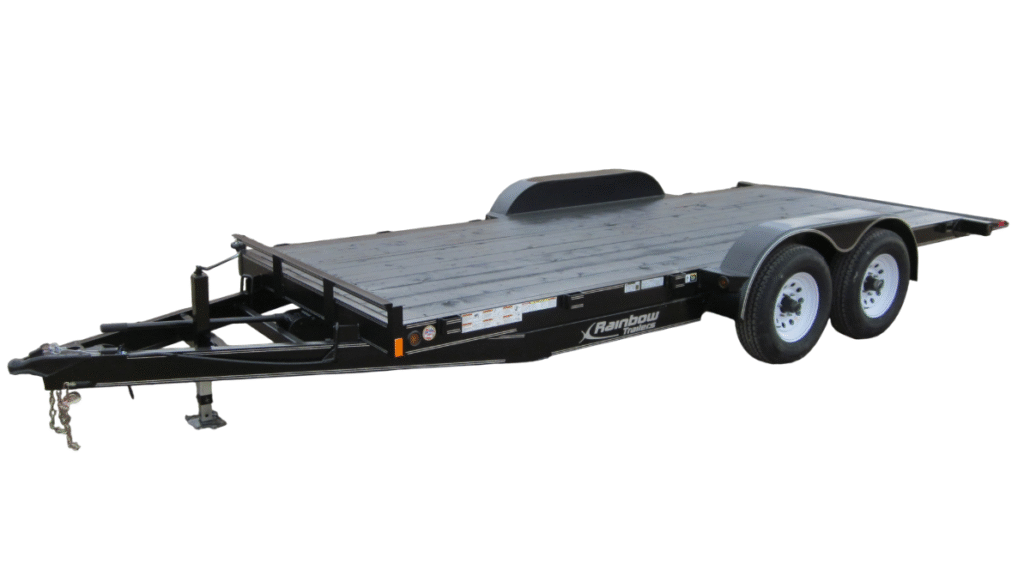

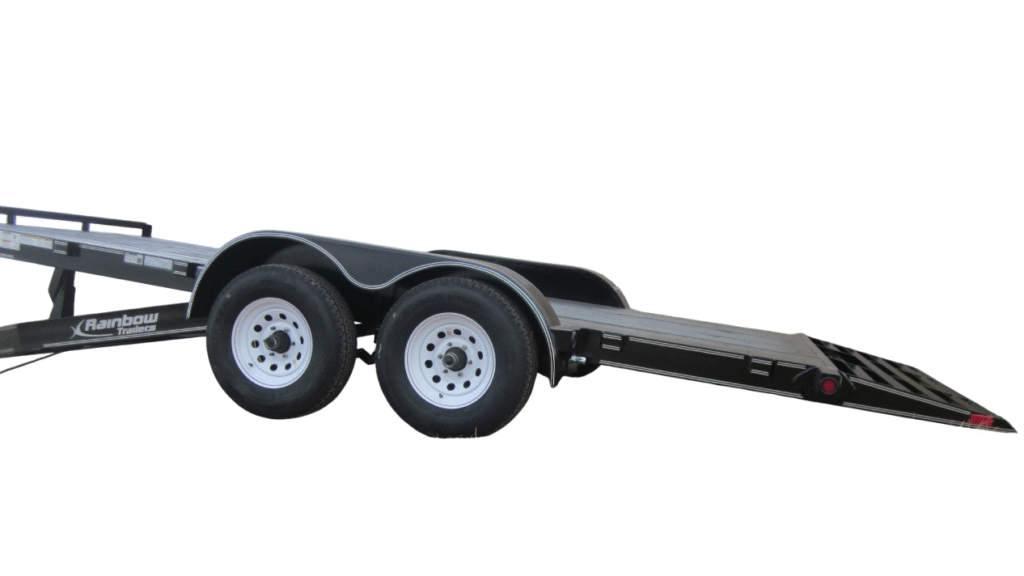

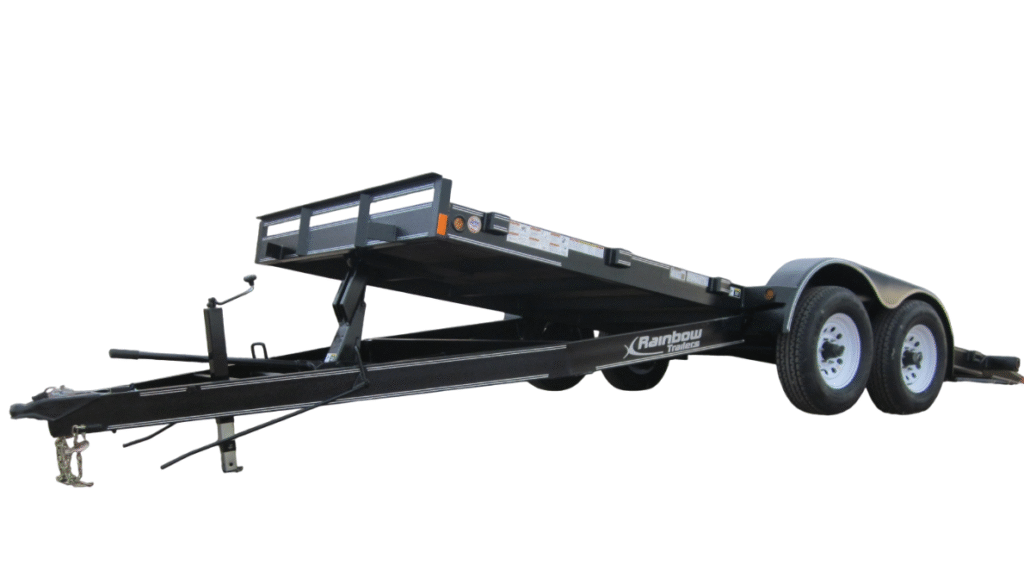

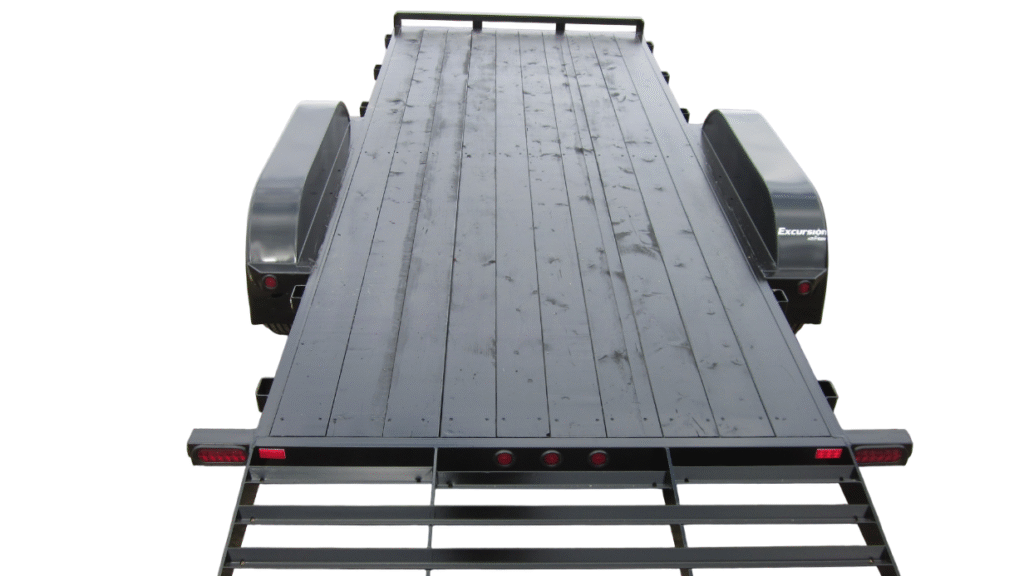

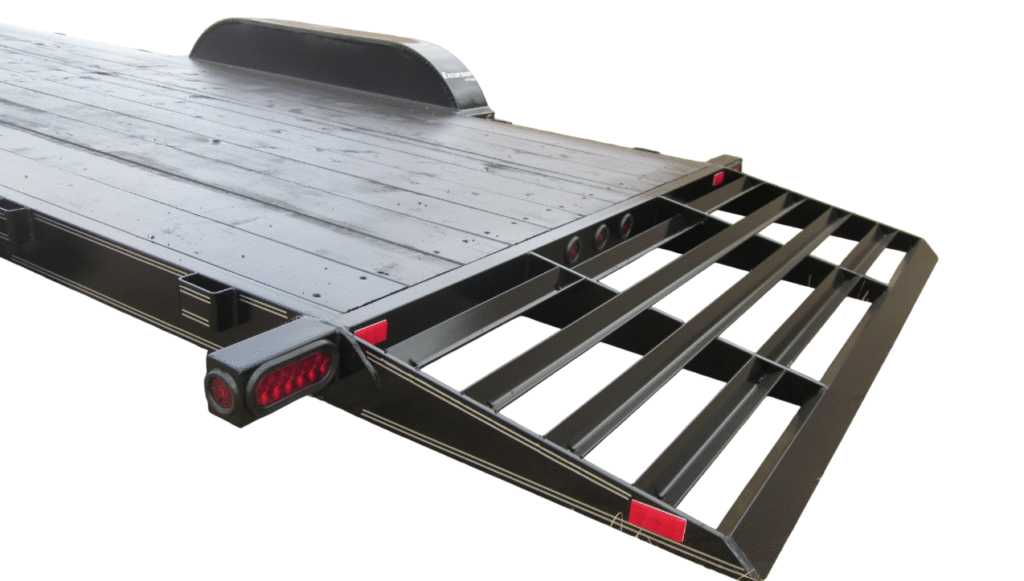

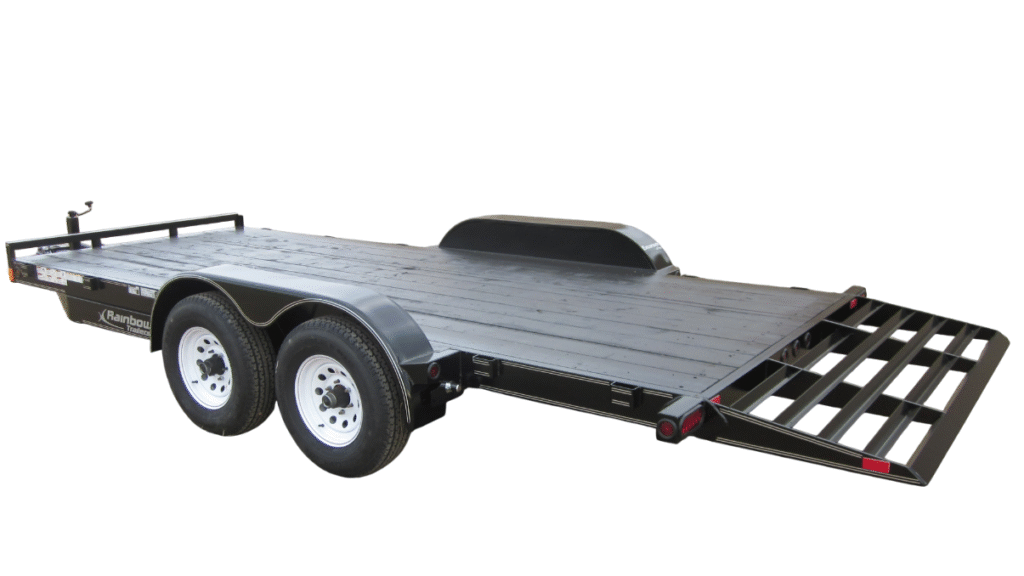

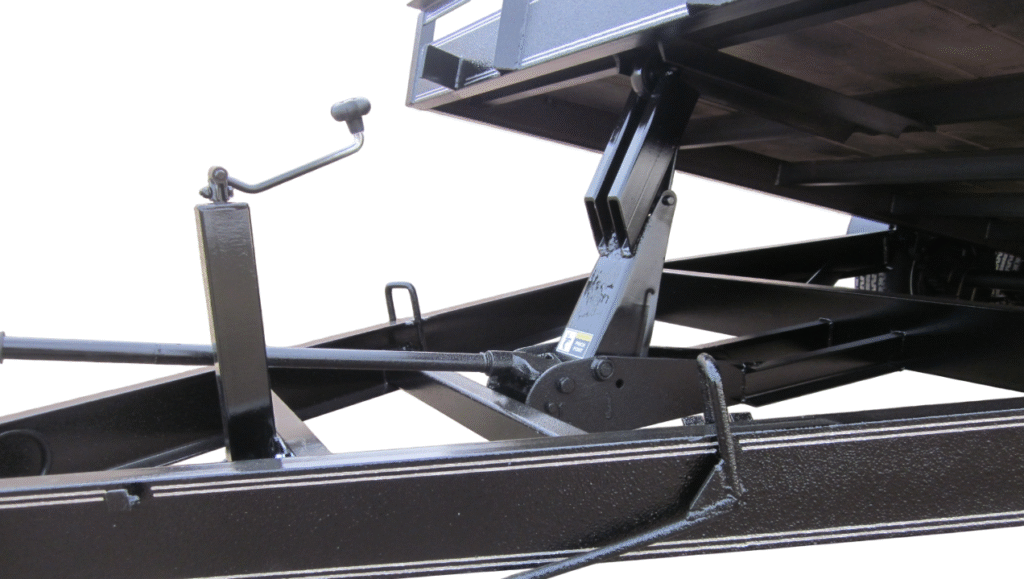

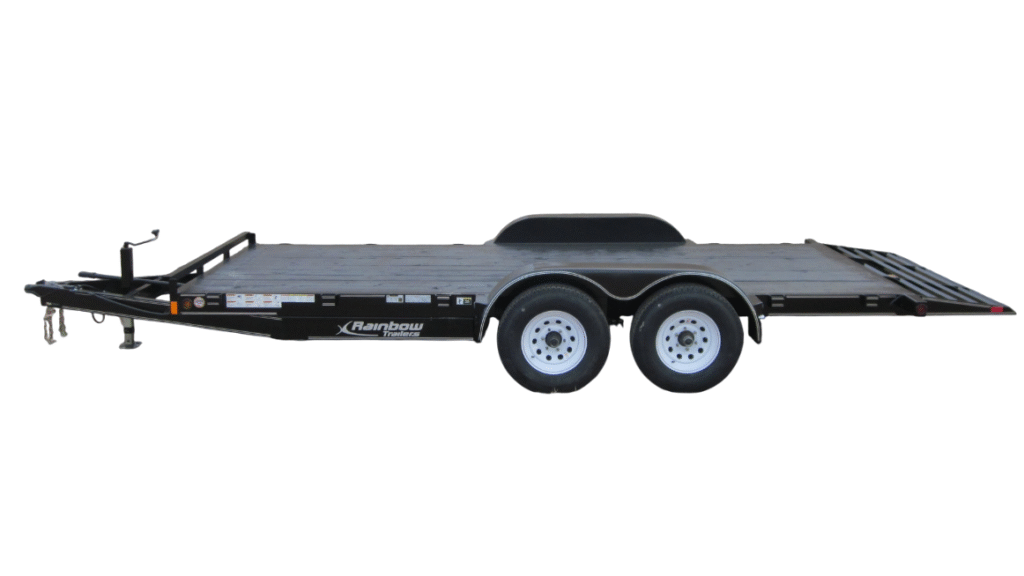

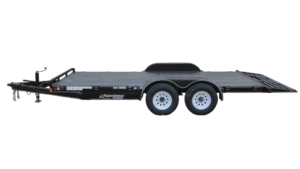

18' Full Tilt C & E w/ 2-5200 lbs. Axles
Specifications:
Available in: Excursion
Model #: 8518M
- Overall Length: 23′ 5″
- Overall Width: 102″
- Axles: 2-5200 lb.
- Ball Size: 2 5/16″
- Between Fenders: 81 1/2″
- Bolt Pattern: 6-55 Bolt
- Brakes: Both Axles
- Coupler: 2 5/16″
- Crossmember: 3″ Channel
- Crossmember Spacing: 24″
- Curb Weight: 2,280 lbs.
- Deck Height: 23″ Spring / 20″ Torflex
- Deck Length: 18′ 7″ (Inc/30″ Dove)
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame & Hitch: 6″ Channel
- GVWR: 9,900 lbs.
- Hitch Height: 18″ – 22″ (approx.)
- Hitch Weight (Empty): 300 lbs.
- Jack: 7,000 lb Drop Leg
- Payload Capacity: 8,610 lbs.
- Ply: 8 Ply
- Tires: 15″ D Range
18' Full Tilt C & E w/ 2-5200 lbs. Axles
Specifications:
Available in: Excursion
Model #: 8518M
- Overall Length: 23′ 5″
- Overall Width: 102″
- Axles: 2-5200 lb.
- Ball Size: 2 5/16″
- Between Fenders: 81 1/2″
- Bolt Pattern: 6-55 Bolt
- Brakes: Both Axles
- Coupler: 2 5/16″
- Crossmember: 3″ Channel
- Crossmember Spacing: 24″
- Curb Weight: 2,280 lbs.
- Deck Height: 23″ Spring / 20″ Torflex
- Deck Length: 18′ 7″ (Inc/30″ Dove)
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame & Hitch: 6″ Channel
- GVWR: 9,900 lbs.
- Hitch Height: 18″ – 22″ (approx.)
- Hitch Weight (Empty): 300 lbs.
- Jack: 7,000 lb Drop Leg
- Payload Capacity: 8,610 lbs.
- Ply: 8 Ply
- Tires: 15″ D Range
18' Full Tilt C & E w/ 2-5200 lbs. Axles
Specifications:
Available in: Excursion
Model #: 8518M
- Overall Length: 23′ 5″
- Overall Width: 102″
- Axles: 2-5200 lb.
- Ball Size: 2 5/16″
- Between Fenders: 81 1/2″
- Bolt Pattern: 6-55 Bolt
- Brakes: Both Axles
- Coupler: 2 5/16″
- Crossmember: 3″ Channel
- Crossmember Spacing: 24″
- Curb Weight: 2,280 lbs.
- Deck Height: 23″ Spring / 20″ Torflex
- Deck Length: 18′ 7″ (Inc/30″ Dove)
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame & Hitch: 6″ Channel
- GVWR: 9,900 lbs.
- Hitch Height: 18″ – 22″ (approx.)
- Hitch Weight (Empty): 300 lbs.
- Jack: 7,000 lb Drop Leg
- Payload Capacity: 8,610 lbs.
- Ply: 8 Ply
- Tires: 15″ D Range
22' Partial Tilt C & E w/ 2-7000 lbs. Axles
Specifications:
Available in: Excursion
Model #: 8P7T22M
- Overall Length: 27′ 10″
- Overall Width: 102″
- Axles: 2-7000 lb.
- Ball Size: 2 5/16″ H/A
- Between Fenders: 81 1/2″
- Bolt Pattern: 8-65 Bolt
- Brakes: Both Axles
- Coupler: 2 5/16″ H/A
- Crossmember: 3″ Channel
- Crossmember Spacing: 16″
- Curb Weight: 3,085 lbs.
- Deck Height: 23″ Torflex
- Deck Length: 18′ Plus 4′ Stat
- Bolt Pattern: 8-65 Bolt
- Brakes: Both Axles
- Coupler: 2 5/16″ H/A
- Crossmember: 3″ Channel
- Crossmember Spacing: 16″
- Curb Weight: 3,085 lbs.
- Deck Height: 23″ Torflex
- Deck Length: 18′ Plus 4′ Stat
- Electrical Hook-up: RV Plug
- Floor: 2″ Spruce
- Frame & Hitch: 6″ Channel
- GVWR: 14,000 lbs.
- Hitch Height: 20″
- Hitch Weight (Empty): 610 lbs.
- Jack: 12,000 lb Drop Leg
- Payload Capacity: 12,315 lbs.
- Ply: 10 Ply
- Tires: 16″ E Range
